Fabric Laser Engraving Cutting Machine
Fabric Laser Engraving Cutting Machine

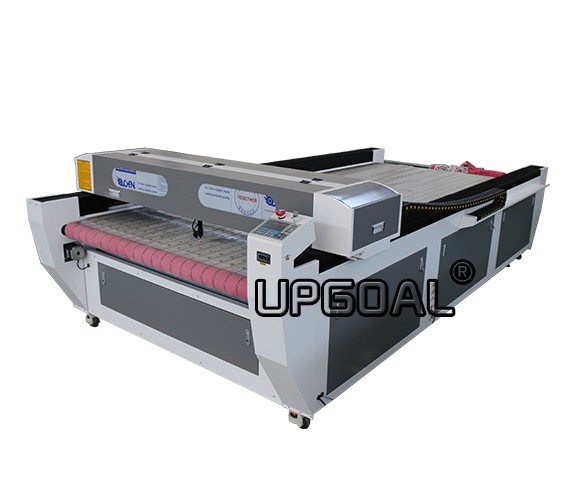

Automatic Feeding Fabric Co2 Laser Cutting Machine 1600*2600mm

Brief Introduction:

Model: UG-1626L
1600*2600mm working area

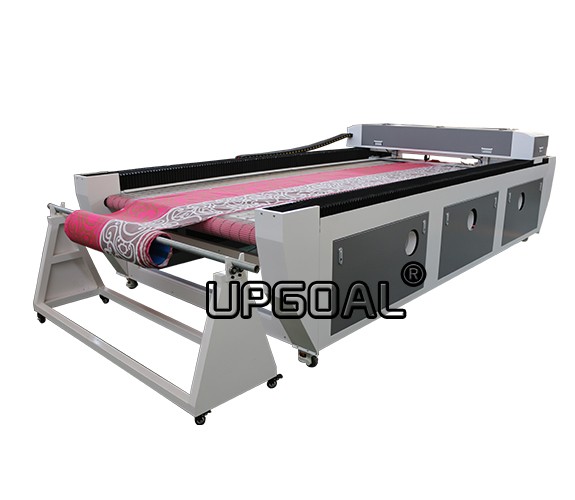

Automatic feeding holder& compression roller
RuiDa RDC 6445Gcontroller
Reci W6 130W Co2 laser tube

INQUIRY NOW

Applications

Automatic feeding laser cutting machine is suitable for engraving and cutting of fabric and leather in garment, embroidery,  toy,  handbag,  glove precision cutting of decoration board and non-mental board,  like acrylic and MDF board in ads, upholstery, electrical appliance and plastic industry,  cardboard box industry,  rubber printing plate engraving.  Ultra-thick material surface carving.

Features

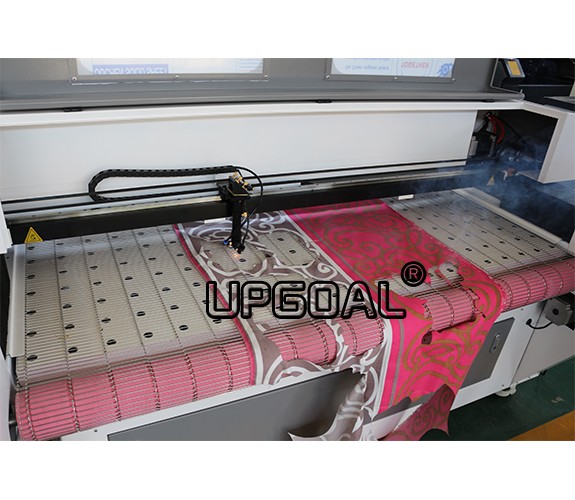

Auto material-feeding platform

Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.

Auot edge cutting without rough edge, burr.

With Oneline control system, Work can be loaded from the Cloud.

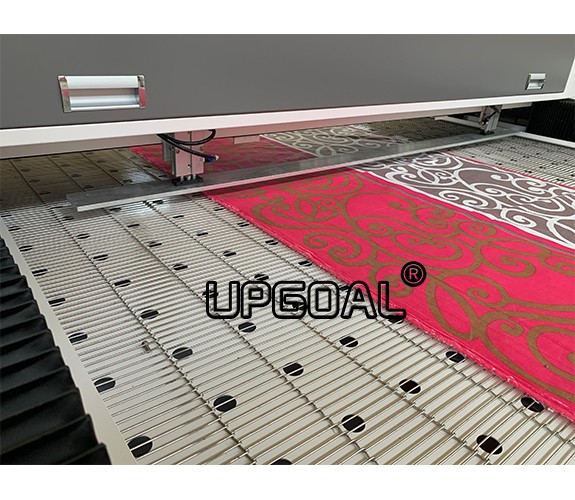

Fabric Presser

Fabric is adsorbed onto the working table ensured material is fed steadily without creases curled edges

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W6 130W Co2 laser tube,  long working time time and stable

Working Table

SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.

Motion System

Imported High precision,low friction force and stand wear and tear CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

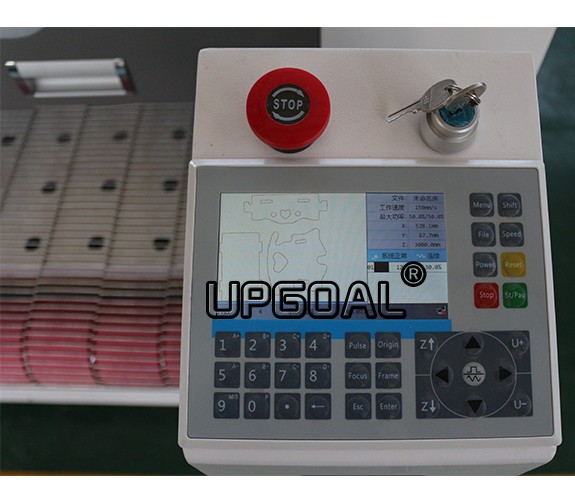

Operation System

Advanced USB port  RuiDa RDC6445G special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts Optimized heat dissipation effect.

Cooling system

Industrial chiller CW-5000, cooling the glass laser tube, ensuring long time continious working.

Optional Automatic Deviation Correcting Device, solved the defect of long-term cutting cloth offset.

Effective working area

1600*2600mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

W6 series, Reci, Beijing

(Rated power: 130W, max. Power: 150W)

Working table

SUS304 stainless steel strip auto feeding working table

Driver mode

3 phases stepper motor and driver,Leadshine brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

3M belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDC 6445G

Control software

RDWorks V8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5000 ( S&A)

Water protection system

Yes

Blow-off system

air blower( 3sets) and air pump

Biggest scanning accuracy

2500DPI

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Voltage

AC 220V /110V, 50/60Hz, single phase

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc
